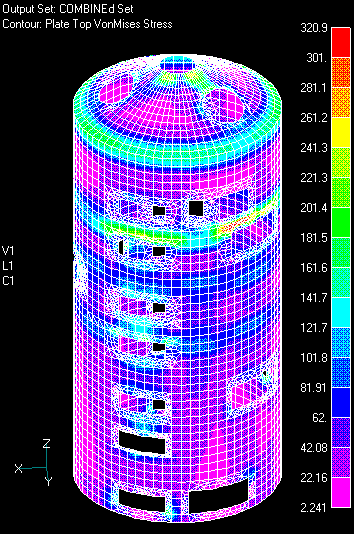

Diagram shows the stress contour under maximum loads for the shell plate of a Sulphuric Acid Converter.Higher Stresses are observed around the cutouts. The legend shows the stress values in N/mm2 corresponding to the various color codes.





































•  Click here to view the distorted shape

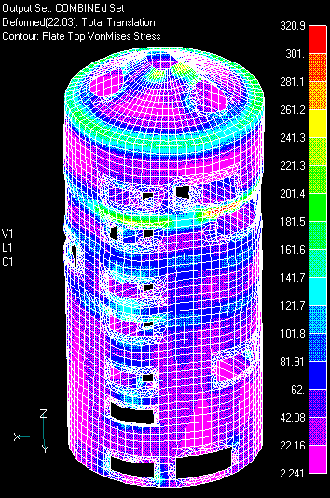

Diagram shows the deflected shape of the same converter along with the stress contour.
(The deflected shape is 15 times magnified)

Distorted Shape
