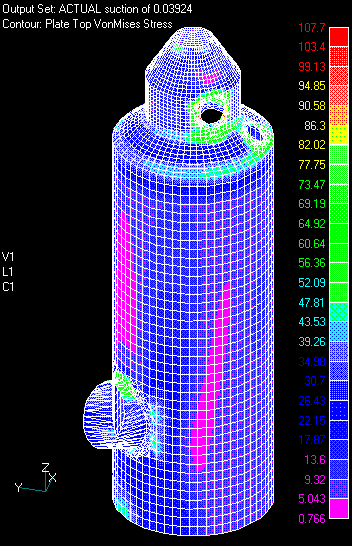

Diagram shows the stress contour under maximum loads for an Inter-Pass absorption tower, along with openings & cutouts for ducts. Higher Stresses are observed around the cutouts. The legend shows the stress values in N/mm2 corresponding to the various color codes
	Click here to view the distorted picture

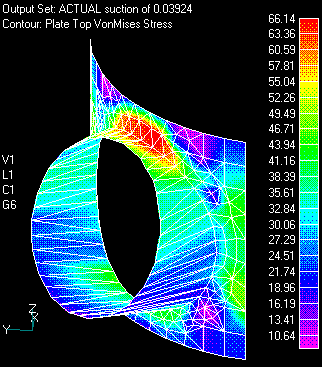

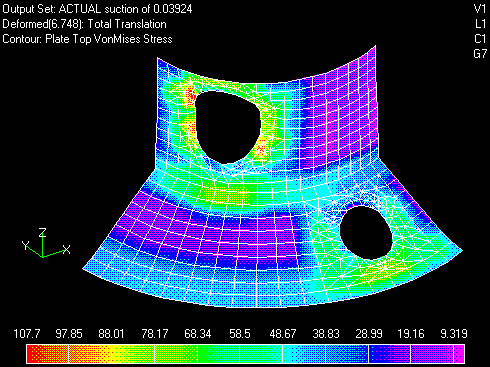

Diagram shows the deflected shape of the circular cut-outs at the upper regions of the Inter-Pass absorption tower, along with the stress contour. Diagram shows the stress contour around the duct at the lower region of the Absorption tower. Distorted View   [Back]
